PULCHRA-millcut

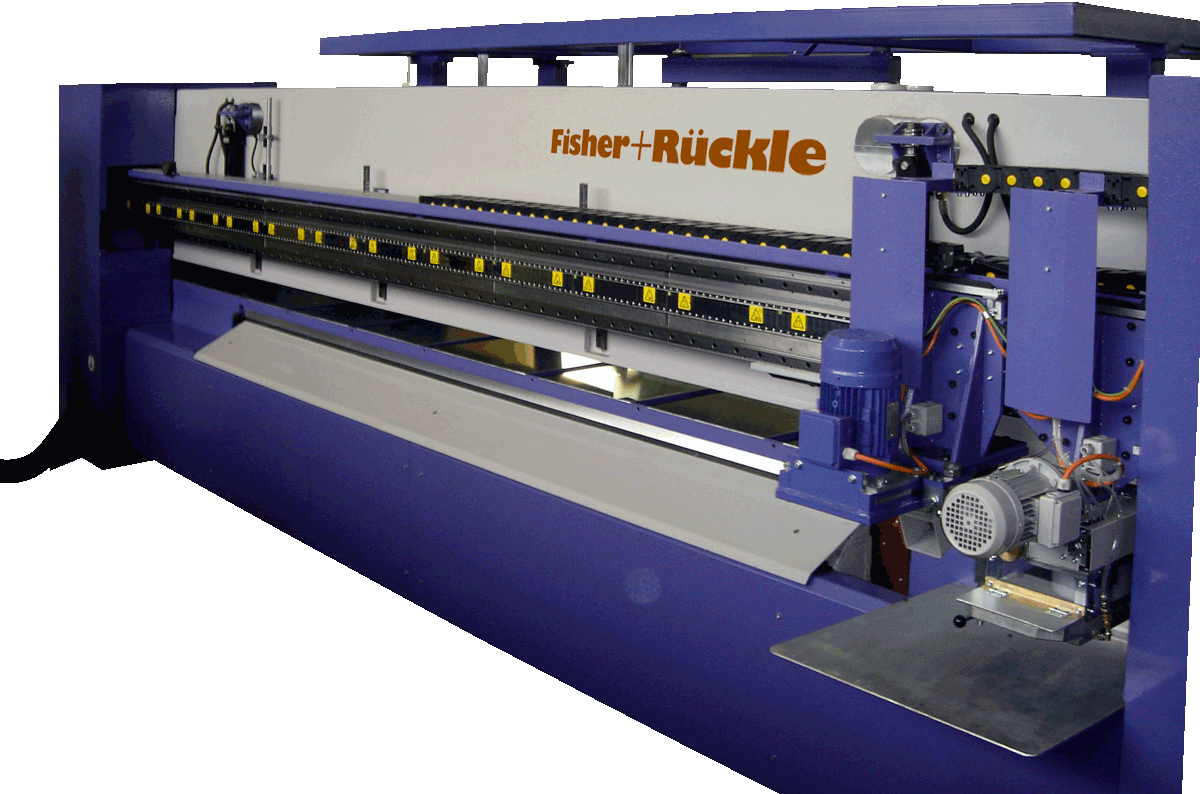

Double-Knife Jointing Guillotine with Milling Unit and Glue Application

The PULCHRA-millcut double knife jointing guillotine, based on the heavy and robust construction of the AFD double knife guillotine as well, features an additional milling head. This results in a smooth and precise veneer edge which in turn facilitates a consistent and reliable glue application, even with buckled and wavy veneers.

  • trims and applies glue to up to 1.5 veneer bundles per minute under the supervision of one operator
  • constant surface pressure on the veneer bundle during trimming and gluing accounts for precise glue application along the bundle’s edge, even with buckled sliced and rotary cut veneers
  • high cutting quality and perfect squared-edge cuts due to the swinging knife movement and the precise milling process
  • highest possible level of automation owing to fully automatic trimming, gluing and discharging processes
  • less space requirements compared to traditional systems
  • special control modes allow to split up or to double cut veneer bundles

Three veneer bundles are simultaneously processed in continuous mode: the first on the pre-feeding and optimisation device, the second under the front pressure beam and the third under the rear pressure beam in front of the automatic discharge system.

Sequence of Operation

The veneer bundle is manually placed on the pre-feeding device and aligned on the gripper shafts. The grippers firmly clamp the veneer bundle as a pre-set laser line illuminates the position of the front knife.

To optimise veneer yield, the manually operable laser line for the positioning of the back knife is quickly and exactly set and the data transferred to the computer at the push of a button. The following processes run automatically.

The veneer bundle is placed in the machine, aligned at the position of the front cut and firmly held by the frontal pressure beam (2). The grippers (1) release the veneer bundle and revert to the initial position to retrieve the next bundle. In the meantime, the front knife (3) accurately cuts the veneer bundle on the front edge.

The gluing roller (4) now quickly applies the chilled glue on the complete bundle’s edge in a clean and gapless fashion by travelling along the clamped bundle. The bundle keeps being pressed between the cutting and glue application processes. The grippers now position the veneer bundle at the rear cutting position. As the rear pressure beam lowers to clamp the bundle, the grippers retract und the rear knife cuts to width with optimum yield.

The rear gluing roller then evenly glues the edges of the veneer bundle still firmly clamped. After gluing, the rear pressure beam releases the veneer bundle before the grippers of the automatic discharge system (5) deliver it to the roller conveyor for angular outfeed to a fanning station, for example FANNINGMASTER Veneer Fanning Machine Fanningmaster(7).

Pre-feeding and Optimisation Device

The veneer bundle is manually placed on the pre-feeding device and aligned on the gripper shafts. To optimise veneer yield, the manually operable laser helps position the back knife. The maximum attainable veneer width is thus set and transferred to the computer at the push of a button.


Pressure Beams

The pressure beams press the veneer bundle in a single clamping both for cutting and gluing. The veneer bundle is being cut and glued directly afterwards under constant pressure. This ensures gapless glue application which is specifically useful when processing buckled veneers. The front and rear pressure beams work individually in continuous mode, whereas they work simultaneously in single mode.


Milling Head For Perfectly Jointed Veneers

The PULCHRA-millcut guillotine features an additional milling head to account for a square edge even while processing thick and wavy veneers.


Glue Application Heads

The glue application heads efficiently apply the glue in both traverse paths. Glue application occurs within the same clamping as the cutting, thus ensuring even and gapless glue application, even with wavy and buckled veneers. Chilled, large volume glue pots allow for high operating times without constant refilling.


Maximum Processing Precision

A processing precision only attained in the cutting, milling and imminent glue application combination – while the veneer bundle is still tightly clamped.


Maximale Verarbeitungspräzision

Eine Bearbeitungspräzision, die nur in Kombination Fügeschnitt, Fräsen und unmittelbar folgendem Leimauftrag – in Ruhelage – gewährleistet ist.


Automatic Discharge System

After cutting and gluing, the veneer bundles are automatically taken over by a discharge system and transferred to a roller conveyor for angular outfeed to a fanning station.


Computer Control and Format Dimension Storage

The built-in computer, based on a Windows operating system, allows for a selection of programs and operating modes. The positioning control based on a micro processor with storage function for the most common widths accounts for economic optimising of veneer yield.


Veneer Bundle Fanning (optional)

For the fanning of pre-glued veneer bundles both in grain and cross-grain direction, thereby keeping the veneer strips from sticking together. The FANNINGMASTER is commonly used in combination with the GLUEMASTER glue application machine or the PULCHRA  double-knife jointing guillotines with built-in automatic glue application. Automated production lines typically rely on these machines.
